Blind Spot Monitoring Millimeter Wave Radar BSD BSM BSA Microwave Radar RCTA AOA Blind Spot Monitoring Variable Lane
Four advantages, unstoppable
Car-level quality, smarter, more complete functions
Advantage one: One launch four receive radar
1、One launch four receive radar has advantages over one-transmit-receiver radar.The detection distance is up to 98 feet.The transmission speed is faster and more accurate.
2、 Long-distance large-scale detection, the installation angle of one launch four receive radar is 45 degrees, and the installation angle of one launch one receive radar is 20-25 degrees
3、Improve false alarms, such as false alarms caused by turning green belts or rain and fog (except heavy rain)
Advantage two: Do not occupy the original car OBD
Obtain the vehicle speed automatically, no longer need to use the OBD controller to obtain the vehicle speed; at present, most of the similar products on the market need to occupy the OBD interface, when the OBD is occupied, it is more harmful.
Advantage three: Car-level quality, smarter
Intelligently enable long-distance detection, improve false alarms, and will not disturb the alarm all the time because the distance becomes longer.
Advantage four: More powerful functions, the same functions as the products equipped by car manufacturers
1、Increase (RCTA) early warning of reverse crossing，to solve the blind zone range that cannot be seen by rearview and reversing radar;
2、Increase (LCA) intelligent parallel lane change assistant
3、Increase (AOA) active overtaking warning，
4、Increase (DOW) door opening warning (optional)
5. Increase the B-pillar blind zone follow-up warning to detect vehicles driving at the same speed in the blind zone, so that it is easy to know the situation of vehicles at the same speed in advance
6、Detection distance up to 98 feet
Why do we need blind spot monitoring?
Vehicle rearview mirrors have blind spots, especially within 8 meters behind the side of the B-pillar of the car, which is a very dangerous driving blind zone, which can easily endanger driving safety!
The system is a vehicle auxiliary equipment, which can help drivers safely change lanes while driving.

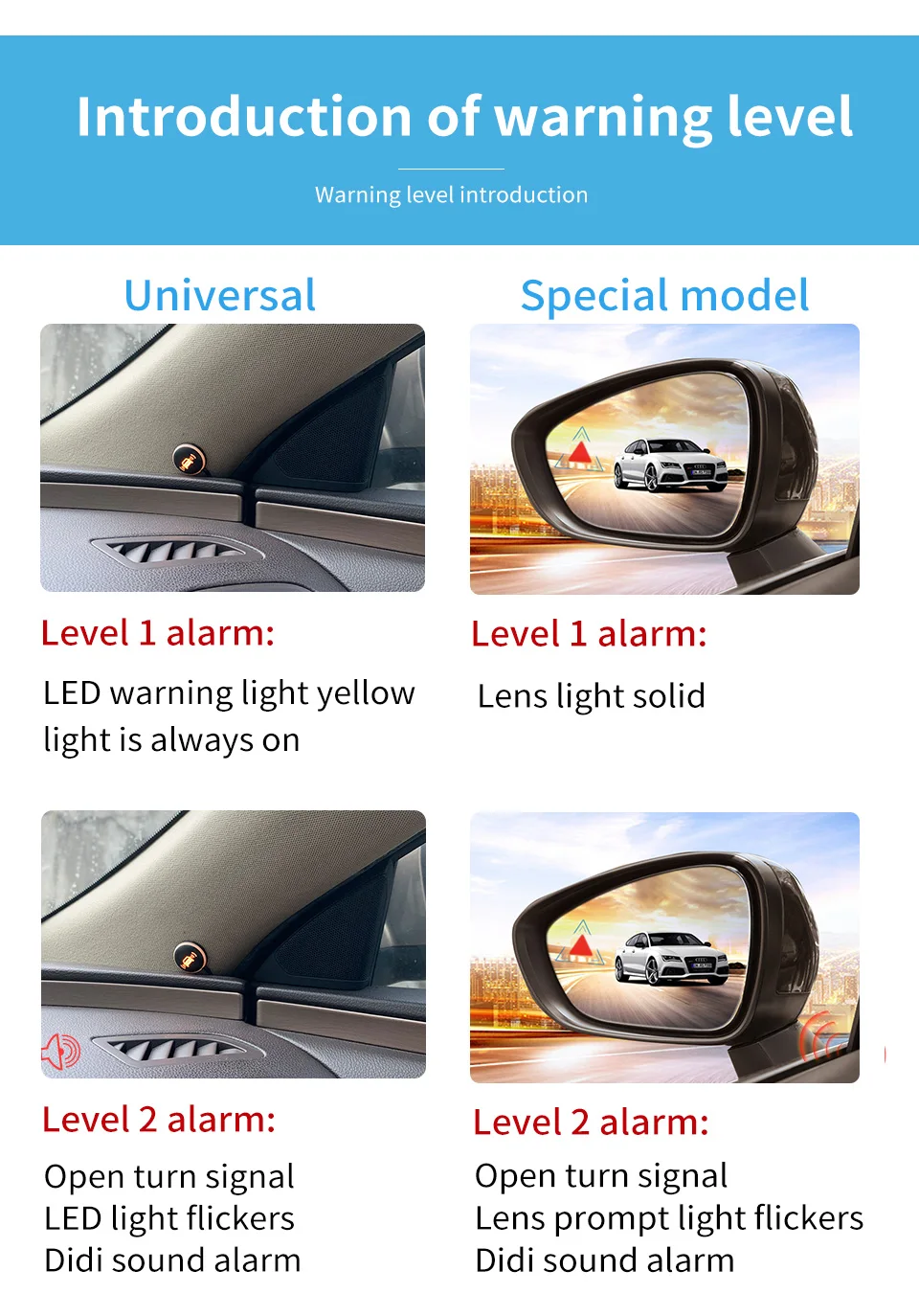

When BSM BSD millimeter wave radar is installed in your car, as long as there are moving objects in the rear of the vehicle, the LED lights will flash, no matter in the day, night or even in the snow. The sound signal reminds the driver to be careful when changing lanes to avoid the possibility of side collision.

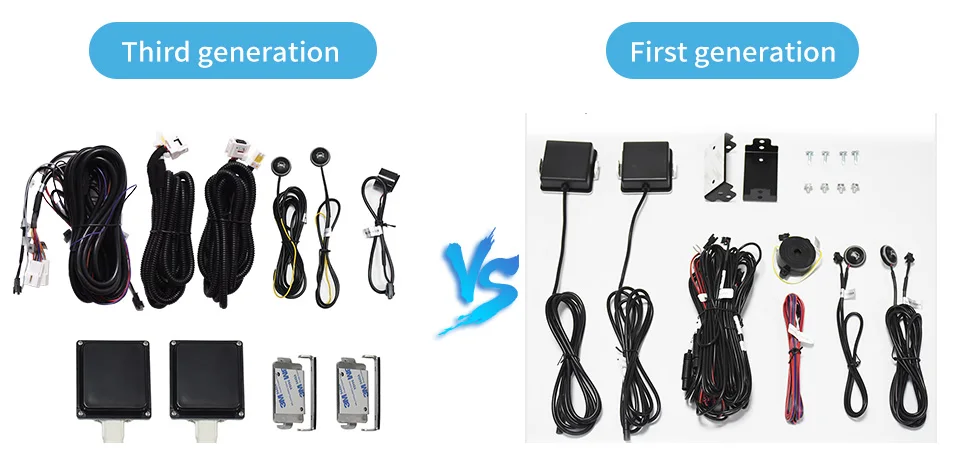

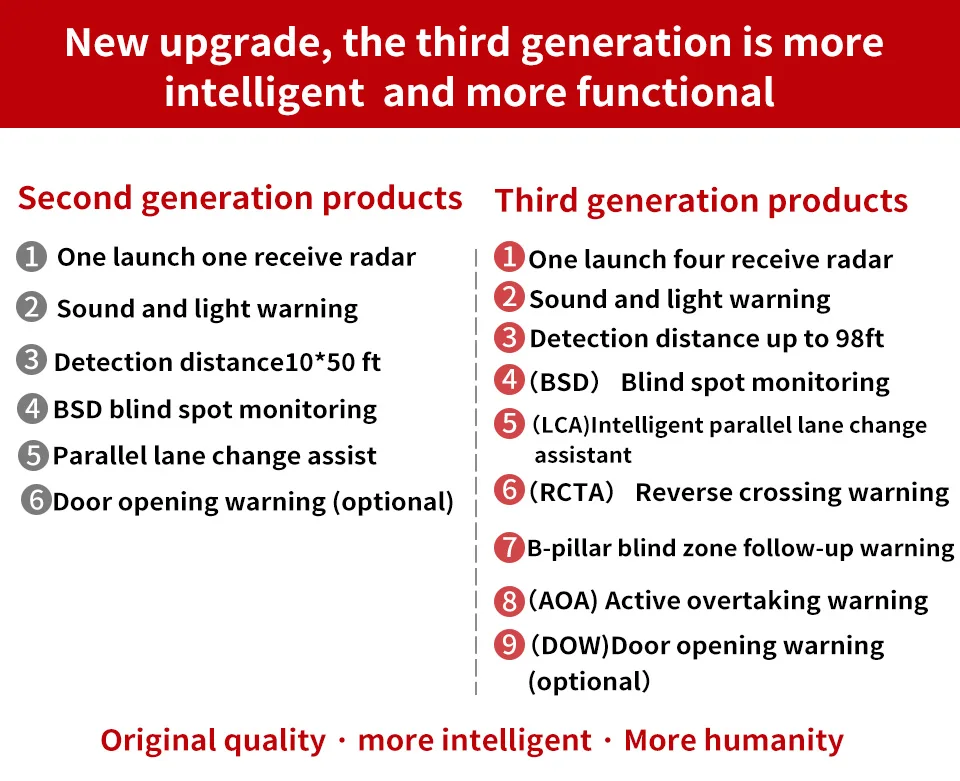

2、Comparison of radar sensors
The third generation product uses the 24GHz millimeter wave radar sensor chip made in Germany
Use one launch and four receive radar sensors, with more complete functions and car-grade quality

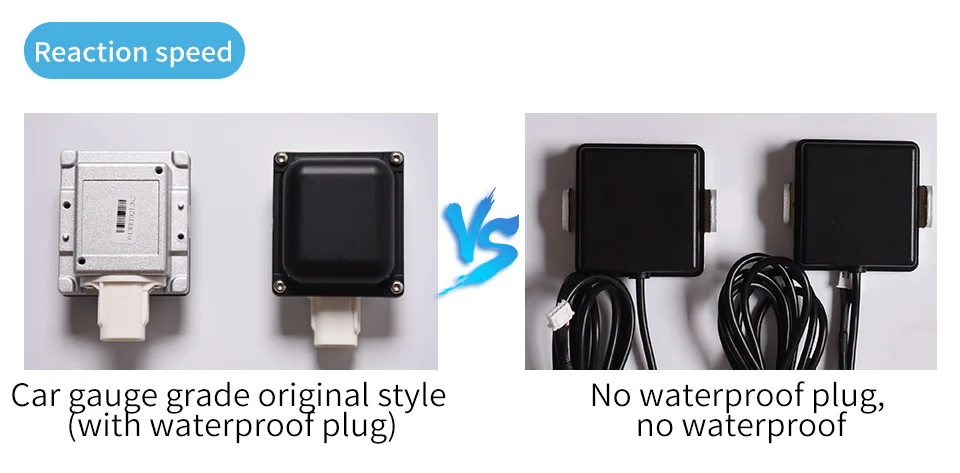

Automotive grade original waterproof plug
Private mold, developed and produced by Driintel
The installation angle of the radar is 45 degrees, and the detection range is wider (the installation angle of the radar sensor for one launch one receive radar is 20-25 degrees)

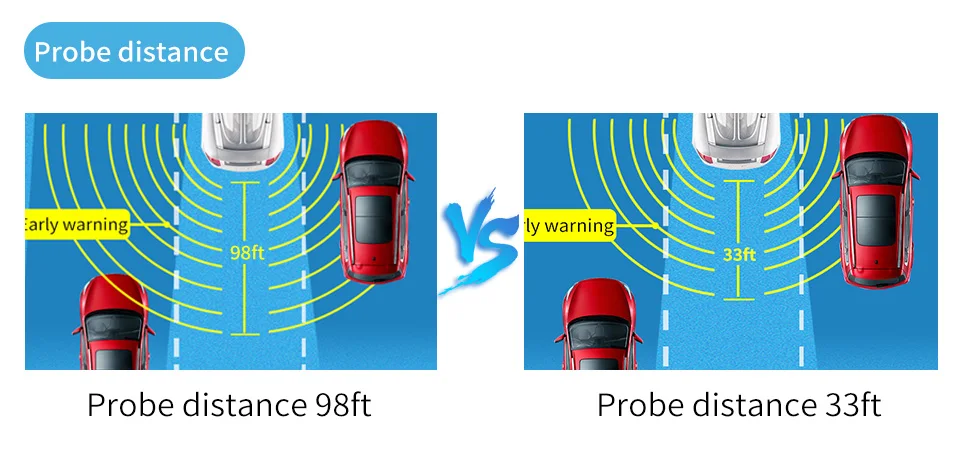

3、Detection of distance differences
Long-distance and large-scale detection
The detection range is up to 98 feet. The sooner you understand the car coming from the side, the faster and more promptly you can respond to it and avoid the risk of a collision

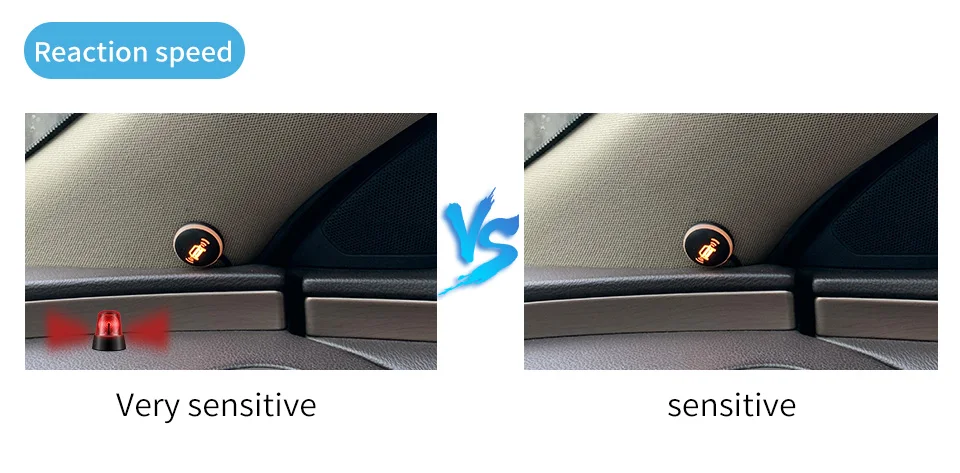

4、Radar sensitivity precision algorithm difference
The third generation product can provide you with an alert at least 2.5 seconds in advance. The main function of this product is to sound an alarm; if below this time, our brain will not have enough time to respond
Radar computer accuracy algorithm: when the time difference between the two vehicles exceeds 60km / h, the third generation product can still work normally and provide distance warning

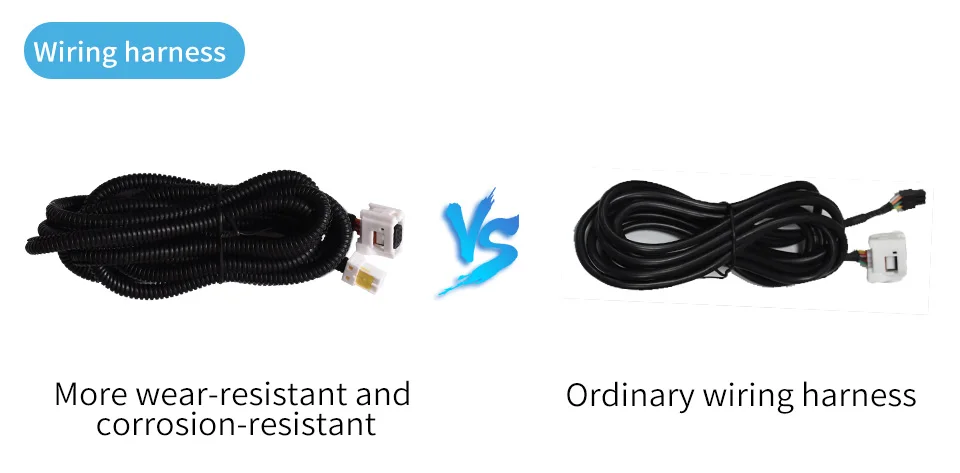

5、Power cord differences
The third generation product use thicker power cord cores, and the transmission speed is faster and more stable
Increase the cable protection tube, the wire will be more wear-resistant and corrosion-resistant, and prevent the mouse from biting the wire, more effectively protect the wire from wear and durability
6、Comparison of functional advantages
One-launch four-receive radar sensor (the third generation product) has unique product functions, which is a function that one-launch one-receive radar sensor cannot achieve.
(RCTA) Reverse Crossing Warning
(DOW) Door opening warning (optional)
(LCA) Intelligent Parallel Lane Change Assistant
(AOA) Active Overtaking Warning
Follow-up warning for B-pillar blind area

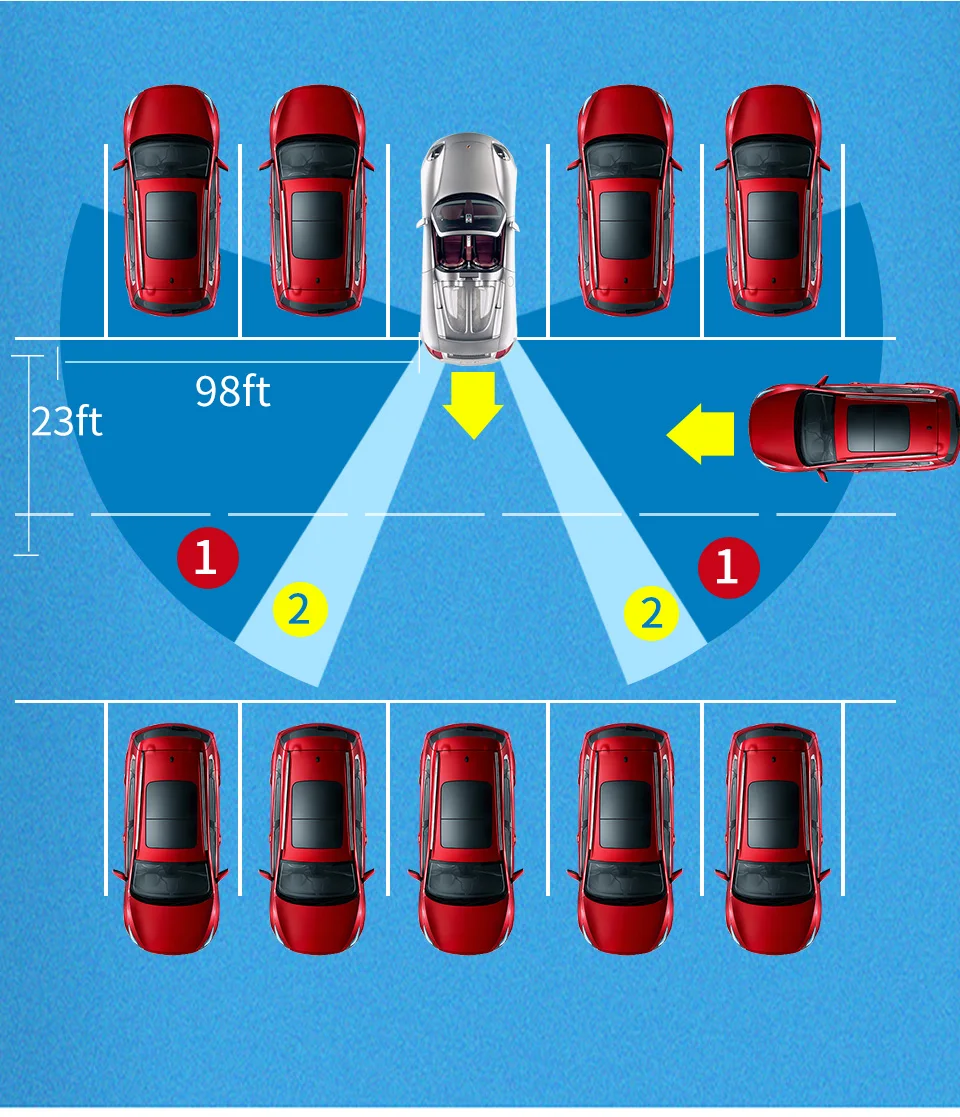

(RCTA) Reverse Crossing Warning
Reversing warning, to solve the blind zone range that cannot be seen by rearview and reversing radar.
When the driver backs out of the garage or out of the parking space, he detects the traffic situation in the area where the rear sight and the parking radar cannot reach the area. Remind the driver to prevent a collision.
Detection and warning distance: 30m (horizontal left and right) * 7m (rear of the vehicle) When a moving object enters the warning area, LED lights and sound will remind.
Note:
(Area 1) refers to the detection range of a blind zone of about 30 meters on both sides:
(Area 2) refers to the visible range of the rearview mirror and reversing radar;

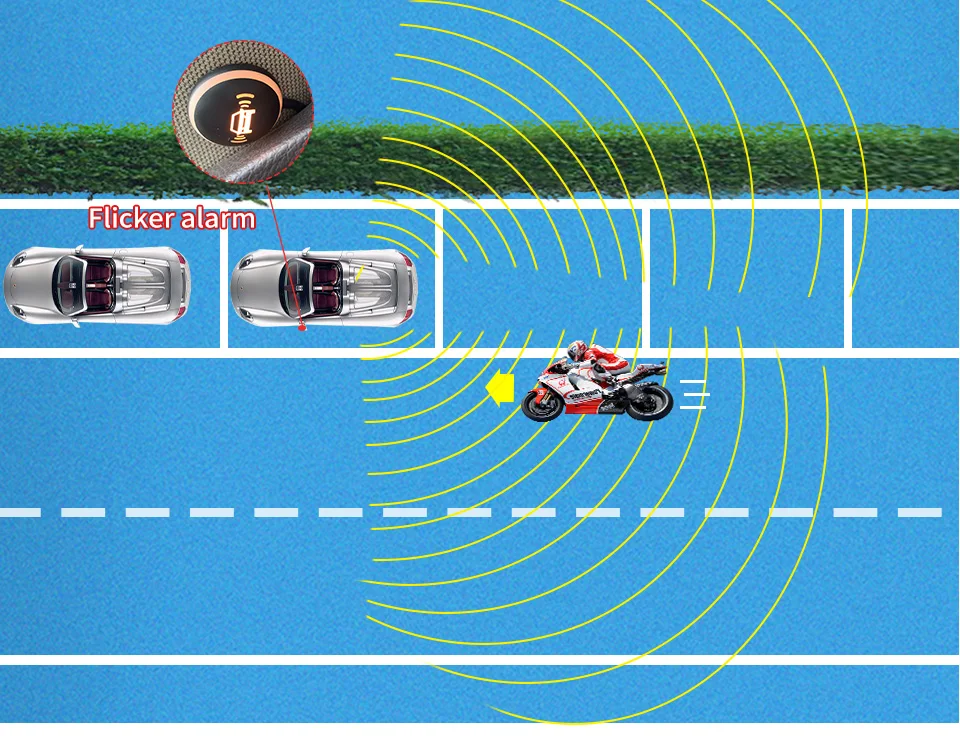

(DOW) Door opening warning (optional)
Door opening warning function, when parking and opening the door, the driver will be warned when a vehicle or pedestrian is detected in the rear to avoid collision with the vehicle or pedestrian in the rear when the door is opened
This function is suitable for vehicles with four doors (two doors), and can work within 2 minutes after the ACC is closed

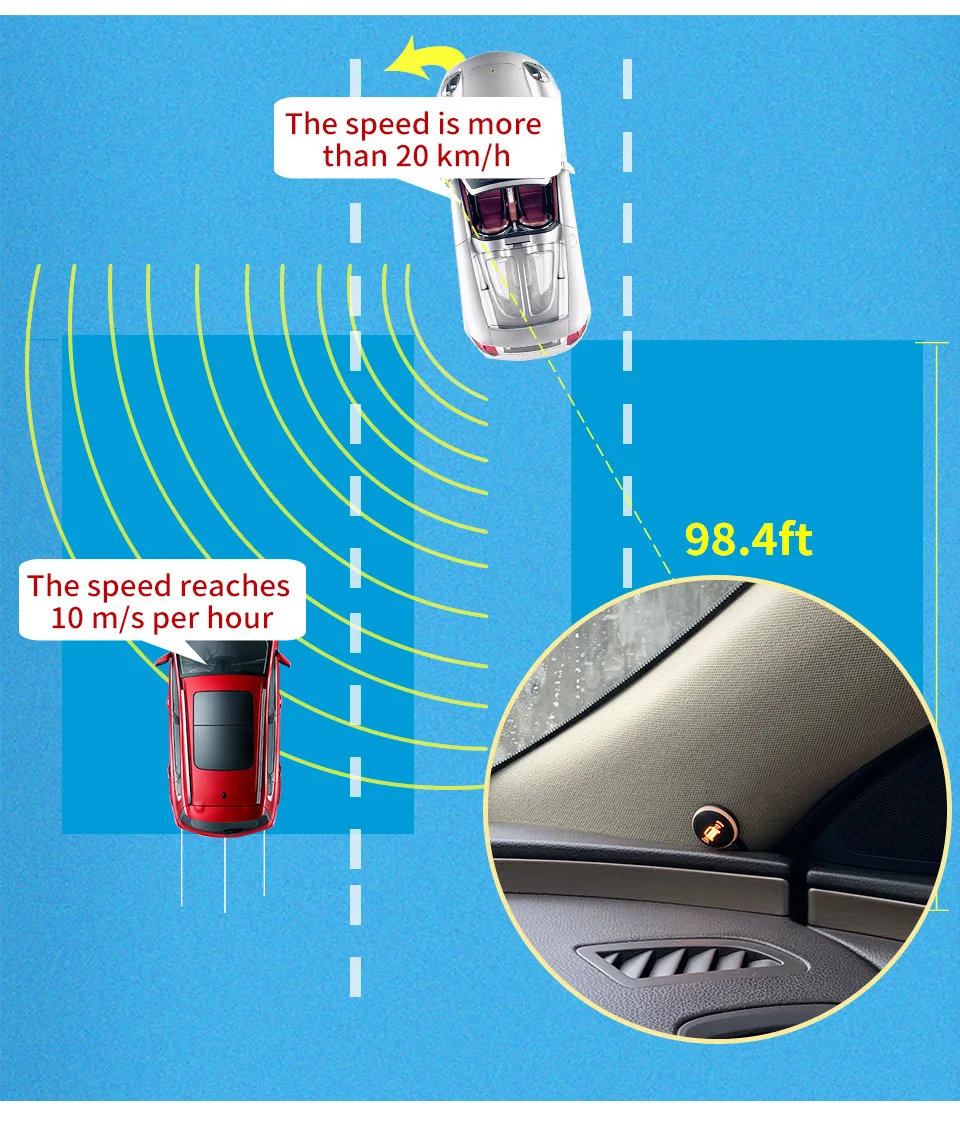

(LCA) Intelligent Parallel Lane Change Assistant
In high-speed driving, when the vehicle speed is greater than 20km / h, the system will activate the LCA function. When the detection distance is extended back to within 30M, when the speed of the target object reaches 10m / s, the LED light will be on.
Intelligently realize long-distance detection, and will not be affected by the longer distance and will cause interference alarm.
(AOA) Active Overtaking Warning

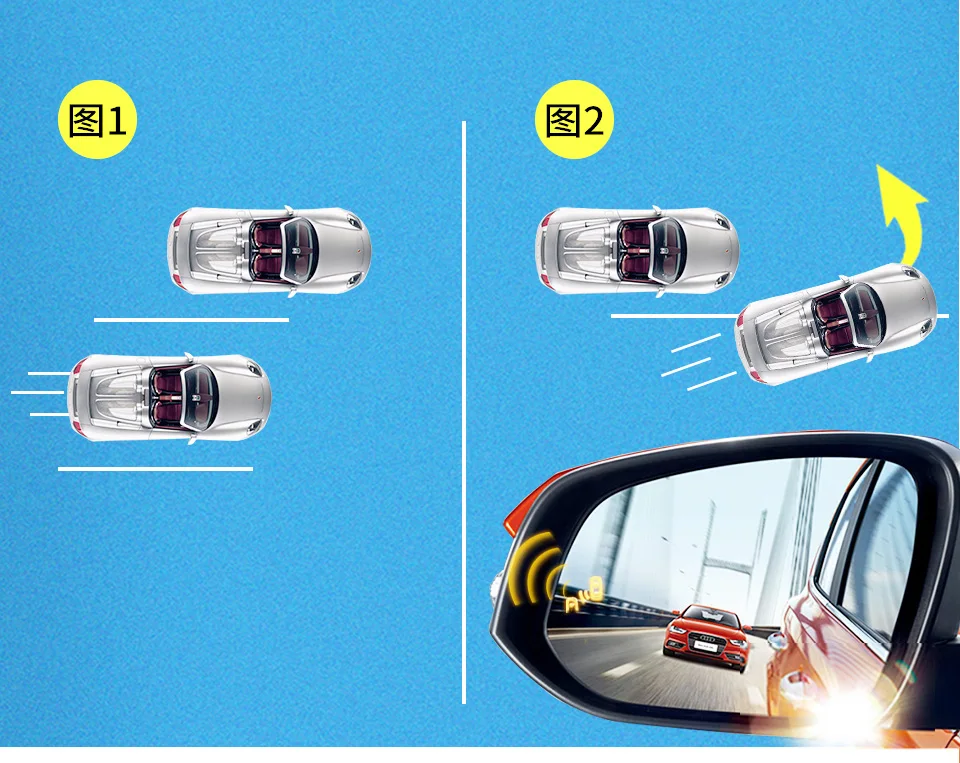

(Figure 1) When the target vehicle accelerates past our vehicle and enters the side of our vehicle, the LED lights up to warn
(Picture 2) If our vehicle is ready to overtake at this time, change the lane to enter the lane of the target vehicle, and turn on the turn signal lights at the same time, the LED light + sound reminder will turn on until the overtaking is completed.
Follow-up warning for B-pillar driving at the same speed

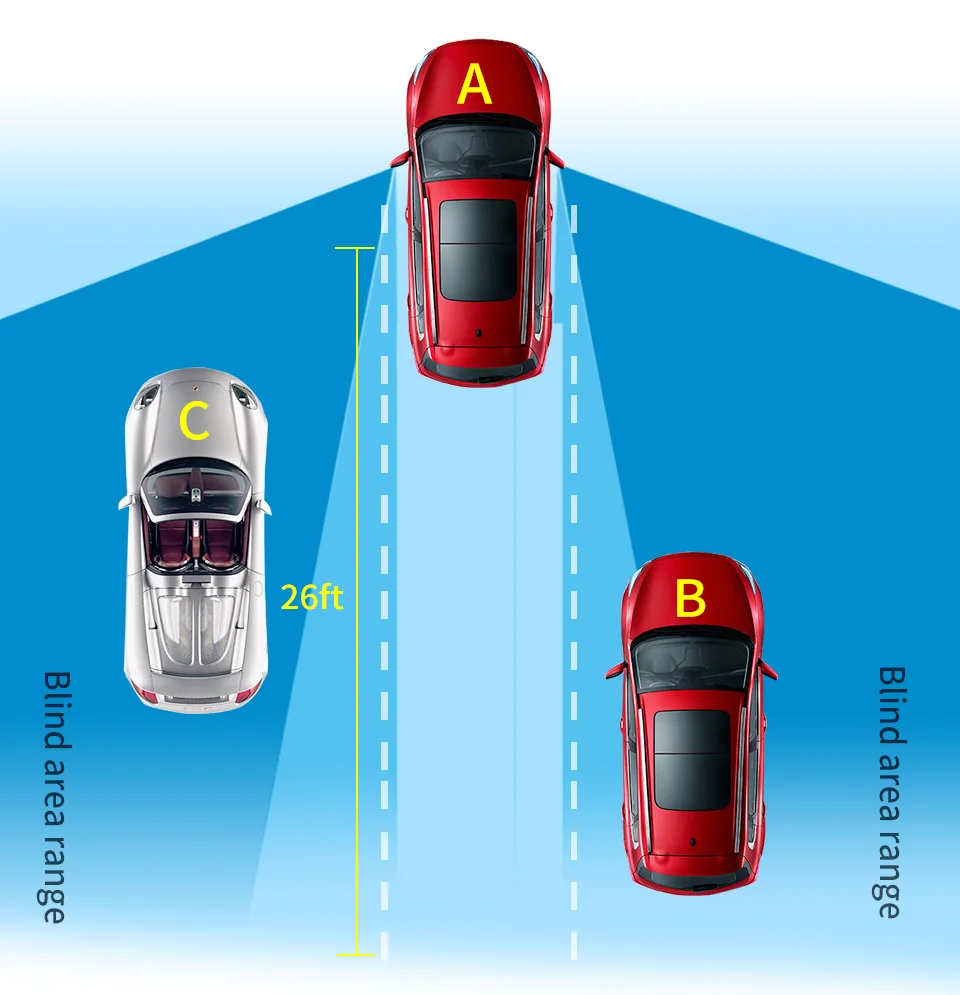

The blind spot is detected 8 meters behind the side of the B-pillar of the vehicle. When the vehicles in the detection zone are traveling at the same speed, an alarm will be issued to remind the owner
One launch one receive radar products only detects and warns the target objects whose speed is > the vehicle. If the speed of the target object ≦ vehicle speed, no warning will be displayed.
The radar installation angle is 45 degrees, and the detection range is wider（One launch one receive radar installation angle is only 20-25 degrees）
Installation Notes

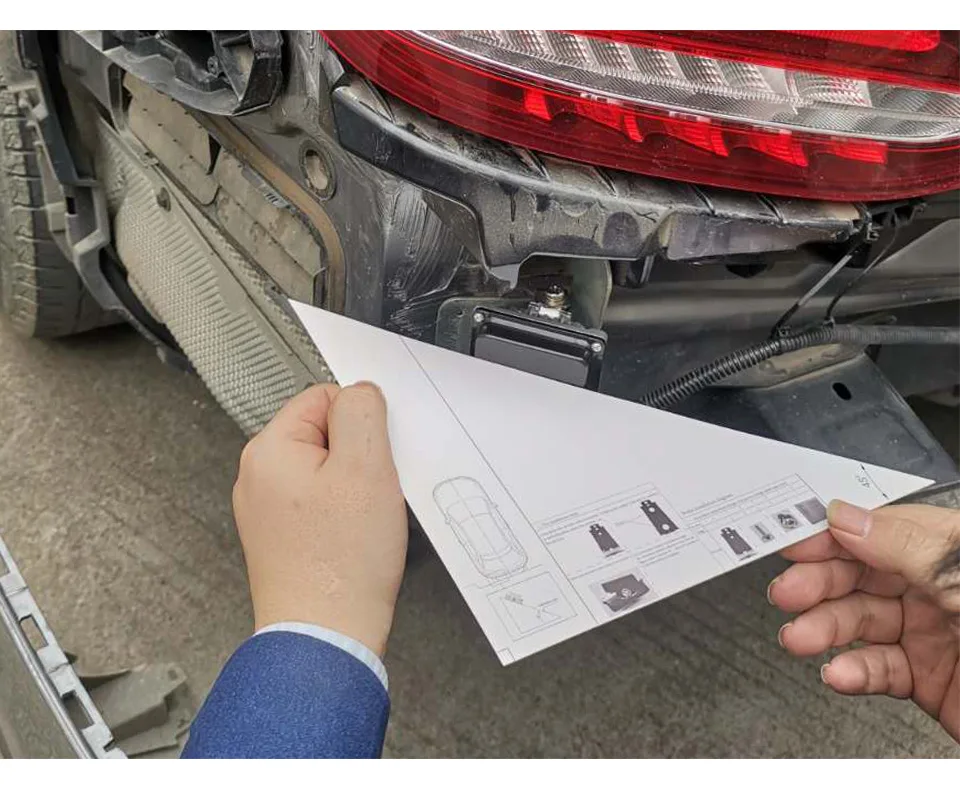

Position the radar angle with the standard triangle, and adjust the angle with the short side parallel to the vehicle body or the tire leaning against the radar surface
Adjust the correct angle to 45 degrees. The upper and lower mounting heights are 70-90cm
The main line linking the radar must face the inside
Radar sensor Installation requirements
Remove the rear bumper and determine the installation position of the radar probe module. The position is located at the arc of the rear bumper of the car. After drilling, the base of the probe bracket is installed.

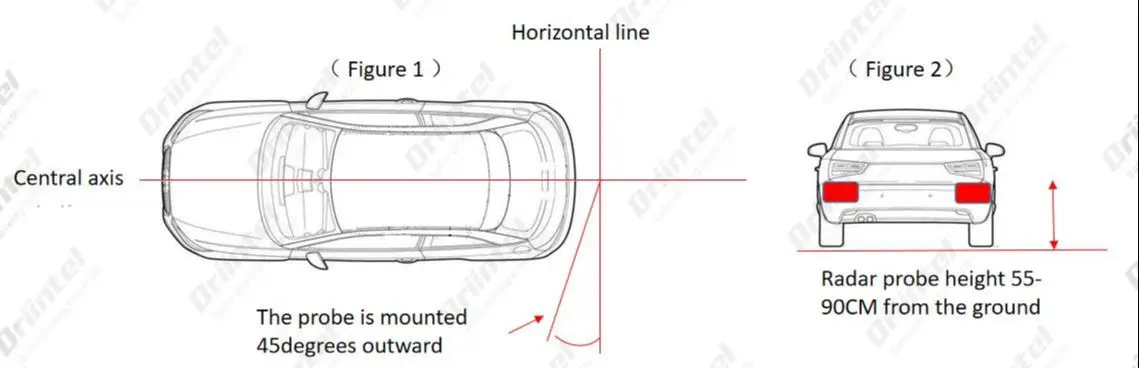

The angle and height are as shown in the figure below: the module is marked with the head facing up.
*Note: The installation angle and height of the radar probe are very important.
For the best experience, please install at the above height. The radar probe is vertical and must not be tilted to the ground. The left and right sides are inclined outward by 45 degrees.
Please use the angle calibration scale and calibration line in the accessory to calibrate according to the calibration method.
The radar probe can’t be installed on the taillight, the reversing radar, and the metal rear to avoid the effect. The radar probe can only penetrate the plastic.

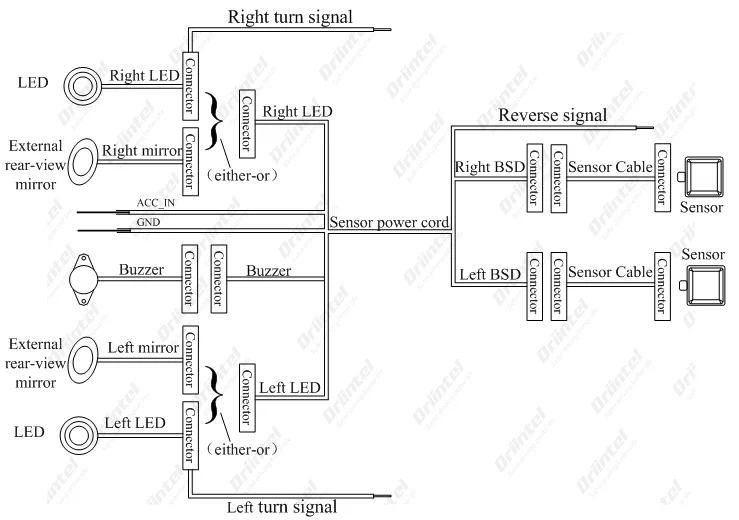

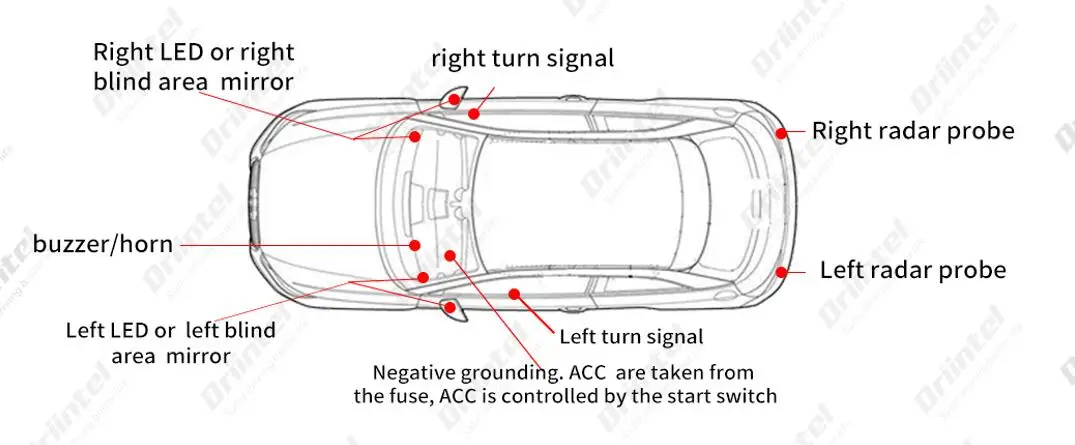

Overall installation and wiring diagram
About installation
It is recommended that the installation be carried out by professionals.
Radar installation The installation angle of radar will affect the detection distance and effect. Please install it strictly according to the instructions.
Weather impact Rainstorm weather may affect the detection distance and effect.
