Fashion 18mm Large Size Camera
With Parking Guidelines Switching Function
Installation of the camera at the rear is visually discreet and very inconspicuous
Extended visibility behind the vehicle formore safety and comfor
Usable with all monitors, which have a cinch video input
Modular Plug & Play solution –removable without installation marks
BMW 1er 128i E81 E82 | E84 | E87 E88 (2007 – 2011)
BMW 116i 118i 120i 135i 640I (2007 – 2011)
BMW 3er E90 | E91 | E92 | E93 (2004 – 2011)
BMW 3er E36 (1992-1999 ) (1998-2006)
BMW 3er 318i 320i 325i 328i 335i (2004 – 2010)
BMW 5er E60 | E61 (2005 – 2011)
BMW 5er E34 (1988-1995) E39 (1995-2003)
BMW 5er 518i 520i 525i 528i 530i (2004 – 2010)
BMW X1 E84 (2009 – 2011)
BMW X3 E83 (2009 – 2010) ,E83 2008 NOT SUPPORT
BMW X5 E70 (2006 – 2011)
BMW X6 E71 (2008 – 2011)
No Support : BMW E46 / X3 E83 2008
Our ingeniously easy to install reversing cameras can be easily retrofitted by replacing a Tailgate handle Original space on many vehicle models – perfect is a retrofit camera not to install.
This makes a particularly inconspicuous installation possible and the original appearance of the vehicle is retained.
Image playback of the reversing camera
The video signal is transmitted via the supplied video connection cable and thus to a monitor, a retrofit navigation system (eg from Pioneer, Sony, Alpine , Kenwood, etc.) or via rear view camera interface (optional) directly on the factory navigation system when inserting the Reverse automatically displayed in the navigation system.

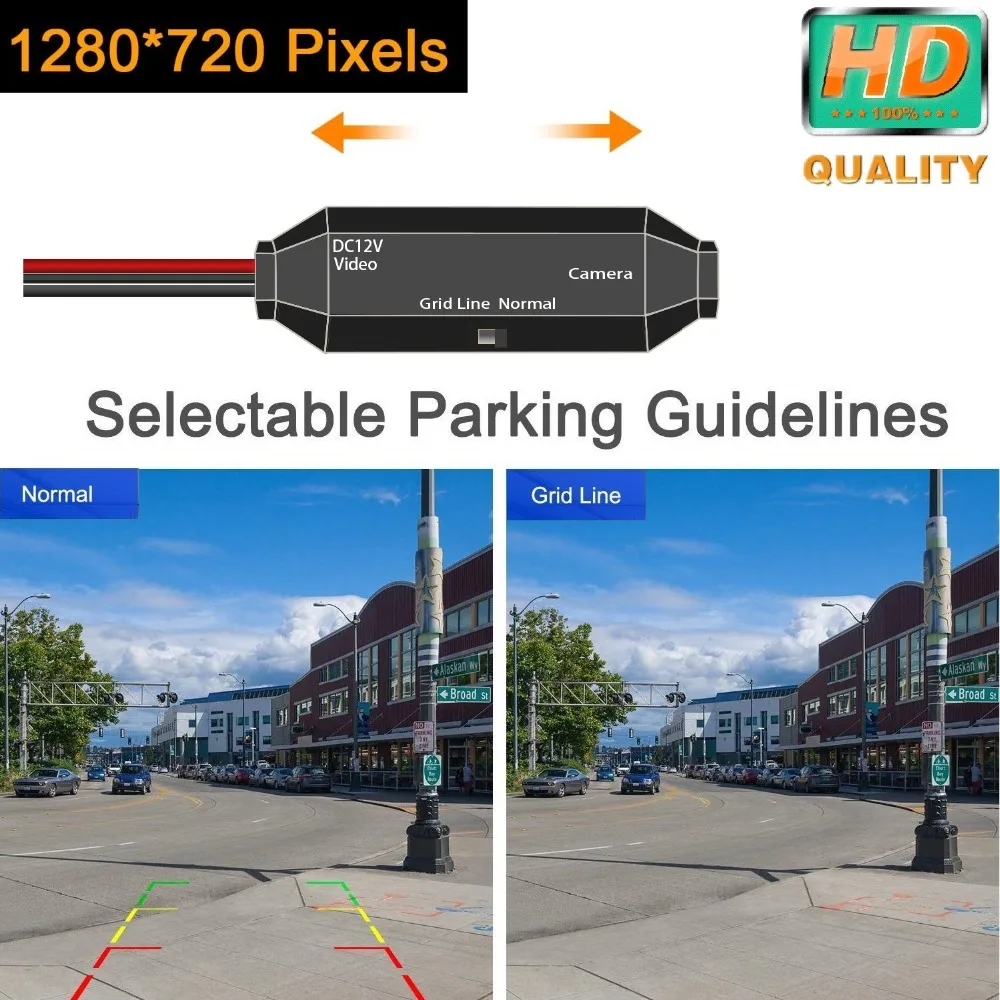

Parking Guidelines Switching Function
Use the toggle switch to select whether the parking guidelines are displayed, no longer need to cut the blue line, which is unrecoverable. Let you no longer struggle, the two modes are free to choose. Allows you to choose the way you want at any time.
3.0 Color Night Vision Restores Real Images
We Used a means of fusing registered low-light visible and thermal infrared (IR) imagery to support realtime color night vision. Opponent processing, in the form of feedforward center-surround shunting neural networks, is used to contrast enhance and adaptively normalize both visible and IR imagery separately.
Power is supplied through the 12V port of your car reversing lamp, so the camera automatically turns on when reverse gear is engaged.
Attention, please note:
Check dimensions Please check before buying whether size specifications and attachment points of the rear-view camera with which your vehicle match.
Play on the factory Navi via reversing camera interface(optional) Do you want to easily see the image of the rear view camera on your existing monitor your factory navigation system, so you will also need a rear view camera interface.
Avoid interference with our signal filter(optional) Vehicles recent use to power the vehicle exterior lighting (rear light, brake light, etc.) a clocked (pulsating) voltage, which is suitable for image sensors / video electronics and has functional or image disorders.Therefore, please close the connection cable to activate the reversing camera is not directly connected to the reversing light, but use our signal filter. A suitable signal filter, see accessories.
Features: Parking Guidelines Switching Function
Shell Color: Black
Camera Color: Black

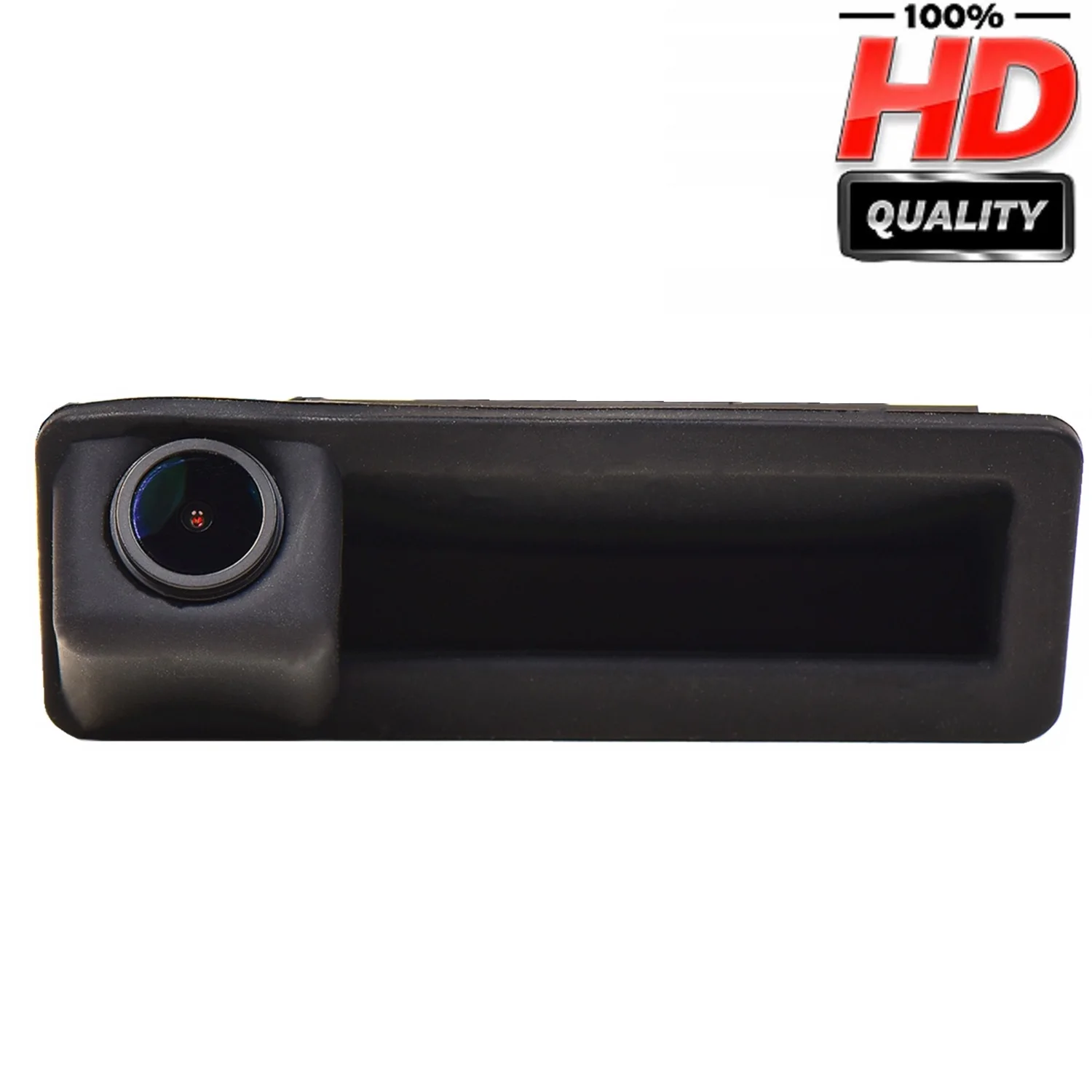

Mounting position: Tailgate handle
Video norm: NTSC
Picture sensor: :1/3 inch color image sensor
Lens angle: 150-170Degree
Light sensitivity: 0.3Lux/F1.2
Cam resolution: 1280 x 720 px
color resolution: 1000 TV lines
Mirroring function: Yes
Distance lines: Yes
Night vision function: 3.0 Color Night vision
White balance: Automaticailly
Operating voltage: 12V
Power Consumption: 250mA
Operating temperature: -22 to 100 degrees centigrade Rh95
1 x Super HD Pro Car Rear view Camera
1 x Switch box for distance lines function
1 x AV Cable (6m/19ft)
1 x User Manual
