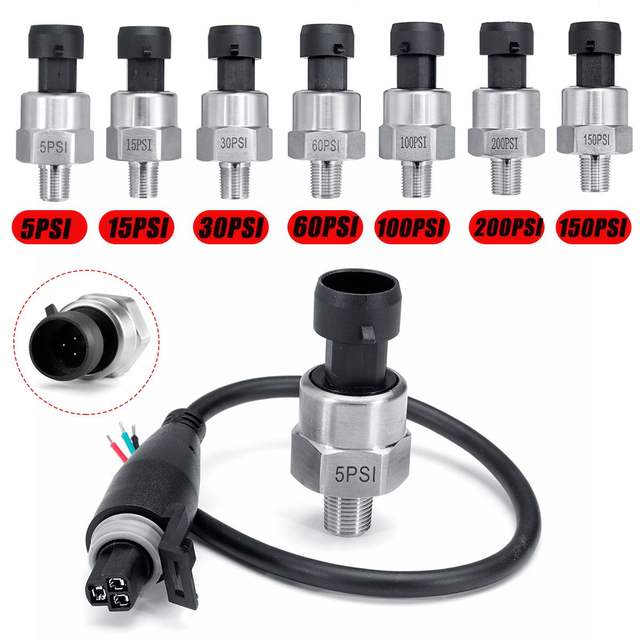

1/8NPT 5V Stainless Steel Pressure Transducer Sender Sensor Oil Fuel Air Gas

Specification:
Model Number: B90095
Product Name: Oil Fuel PressureTransducer
Material: Stainless Steel & Rubber
Color: Silver & Black
Voltage: DC 5V
Size: 53mm x 14mm
Cable Length: 312mm
Thread: 1/8″-27 NPT / 1/8″ NPT
Pressure: 5psi, 15psi, 30psi,60psi, 100psi,150psi,200psi

–30 psi
Input: 0-30 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8″-27 NPT.
Wiring Connector: Water sealed quick disconnect. Mating connector is included.
Wiring: Red for +5V; Black for ground; Blue for signal output.
–100 psi
Input: 0-100 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8″-27 NPT
Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.
Wiring: Red for +5V; Black for ground; Blue for signal output.
–150 psi
Input: 0-150 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Accuracy: +/-0.5%FS
Thread: 1/8″ NPT
Wiring: Red for +5V; Black for ground; Green for signal output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40℃~+120℃
Compensation Temperature: 0℃~+80℃
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤(supply power-6.5V/0.02A)Ω
Long-term Stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical:0.02%FS/℃; Maximum:0.05%FS/℃
Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃
Shock Resistance: 1000g
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1
–200 psi
Input: 0-200 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, and 200 psi outputs 4.5V
Working Temperature: -40~+125℃
Accuracy: ±1%FS
Thread: 1/8″-27 NPT
Overload Capacity: 2 times of rated pressure
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤(supply power-6.5V/0.02A)Ω
Long-term Stability: ± 0.2%FS/year
Temperature Effect on Zero: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃
Temperature Effect on Sensitivity: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃
Shock Resistance: 100g
Anti-Shock: ≤±0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3
Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.
Wiring: Red for IN+; Black for GND; Green for OUT.

Fitment:
For oil, fuel, diesel, gas, air pressure(Cannot use measuring water pressure)
Can be used in oil tank, gas tank, diesel tank etc.

Features:
-It’s an advance pressure transducer than traditional mechanical pressure transducer.
-±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
-It has complete surge voltage protection function.
-Light weight and small size, convenient to install and operate.

Package Includes:
1 x Pressure Transducer (With Cable)
