Viecar ELM327 OBD2 V1.5 Bluetooth 4.0 ELM 327 V 1 5 Scanner PIC18F25K80 ODB2 For Android/IOS OBD 2 OBD2 Car Diagnostic Auto tool
Note:Acrylic box/Carton Viecar ELM327 V1.5 According to customer feedback, this product is compatible for Carista(Software)
Customers Feedback:★★★★★
High quality original Viecar ELM327 with fast shipping(Overseas warehouse,andsuitable for many car models)

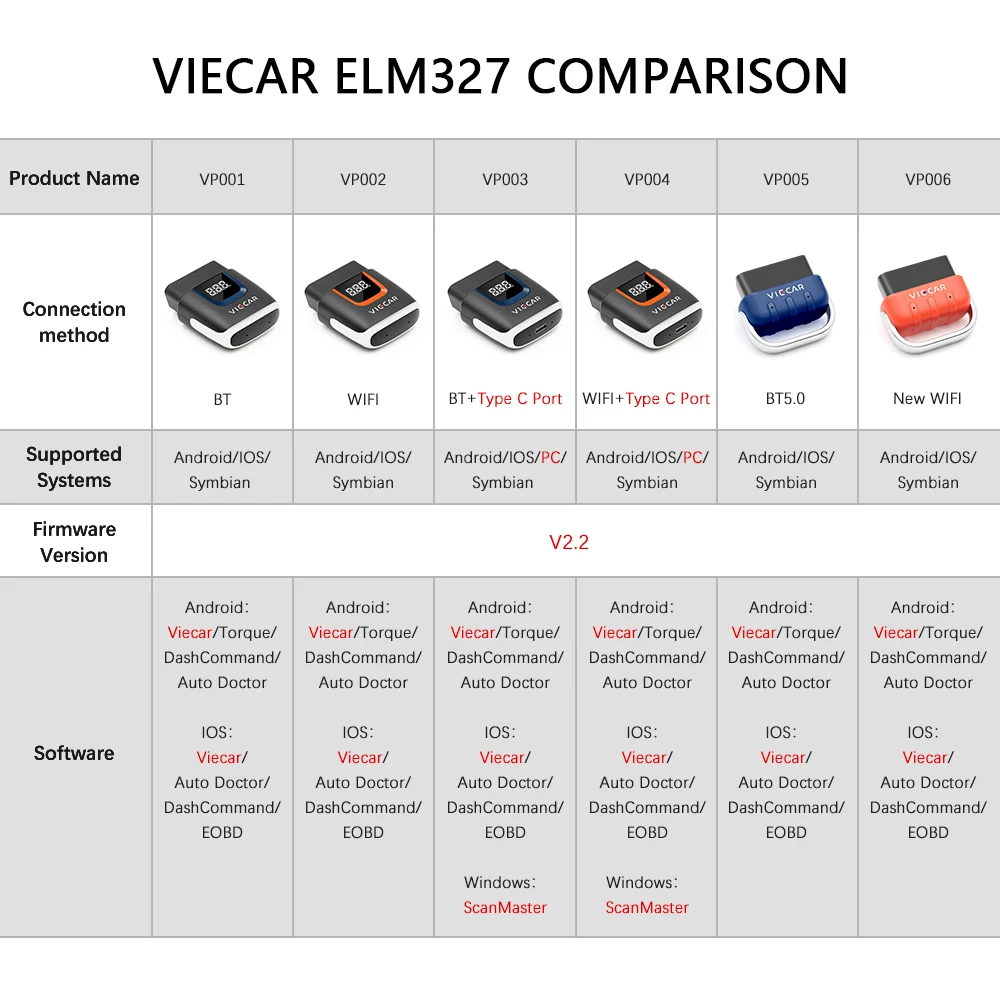

Viecar VP001-VP006 ELM327 Comparison:
1.Product Name: Vircar ELM327 V2.2 VP001/VP002/VP003/VP004/VP005/VP006
2.Connection method:
VP001(Bluetooth 4.0)
VP002(WIFI)
VP003(Bluetooth 4.0+Type-C)
VP004(WIFI+Type-C)
VP005 (Bluetooth 5.0)
VP006 (New WIFI)
3.Supported systems:Android/IOS,PC need with Type-C
4.Firmware Version:V2.2(better than V1.5/V2.1)
5.Support systems:
Android:Vicar/Torque/Dash Command/Auto Doctor
IOS:Vicar/Auto Doctor/Dashcommand/EOBD
Windows:ScanMaster
Purchase Notes!!!
Some customers have feedback that our products will not connect when they connect to IOS via Bluetooth in the Setting of phone,please Remember the connection method,because the Bluetooth 4.0 connection is different from normal Bluetooth when Viecar connect IOS
1.Open the Bluetooth first(But please do not connect the product to the setting Bluetooth page of your phone,this way is wrong!!!)
2.Open the software(like AUTO Doctor)
3.Choose “Extras”,then click “Connectivity “,choose”Bluetooth”,and click “Device”,choose “Viecar BLE”
4.Connect bluetooth in the”Connectivity “,then close the software or refresh software,open software again,then connect to the car again
Software features:
Software can perform the following operations:
Read error diagn
ostic codes – General and manufacturers special use, and display their meaning
(Database has over 3000 generic code definitions)
Clear the error code and shut off the MIL ( “Check Engine” light)
Display current sensor data, comprising:
Engine revolutions p
er minute (RPM)
The calculated load value
Coolant temperature
Fuel System Status
Speed
Short-term fuel situation
Long-term fuel situation
Intake manifold pressure
Injection advance time
Intake air temperature
Air flow rate
Absolute throttle position
Oxygen-sensing voltage associated with the short-term fuel state
Fuel System Status
The fuel pressure
Fuel consumption monitoring and many other data ……
Future software features:
Data chart display and logging
Freeze frame data
Continuous and discontinu
ous oxygen probe results
Supports OBDII protocols:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)Product Parameters:
1.Communication method:Bluetooth dual-mode (4.0)
2.Software platform: Support forAndroid / IOS
3.Operating voltage: 9V~16V
4.Operating current: 45mA
5.Operating temperature: -40 C~85℃ C
6.Operating humidity: <60%
7.Dimensions: 45mm*40mm*18mm
8.Supported vehicle: OBDII protocol vehicleViecar Bluetooth 4.0 is no longer simply a screen information display system, but through stunninghead-up display (HUD):
Let drivers no longer have to bow to watch the meter, while enjoying the pilot driving experience, and eliminating the potential safety problems from bowing to watch meter. Cool real-time dashboard design, extended original car without display data; very largely enhance the visual experience.
1 X Viecar 4.0 Bluetooth
1 X User Manual
