Forscan ELM327 USB V1.5 for Ford Mazda Lincoln Programming Unlock Hidden Functions ELMconfig HS MS-CAN ELM 327

ForScan ELM327 USB V1.5 for Ford Mazada Lincoln Mercury Programming HS-CAN MS-CAN

Forscan ELM327 USB V1.5 Unlock Hidden Functions

Ford Forscan ELM327 USB V1.5 is an affordable, user-friendly, professional-grade OBDII adapter. Get dealership-level diagnostics without paying high dealership prices.
It is designed to take full advantage of all of the features of the FORScan software for Windows.
It is recommend for connection reliability, lightning-fast data transfer speed, and support of the proprietary Ford CAN buses.

Forscan ELM327 USB V1.5 Cable Features:

●CUSTOM-DESIGNED FOR USE WITH FORSCAN

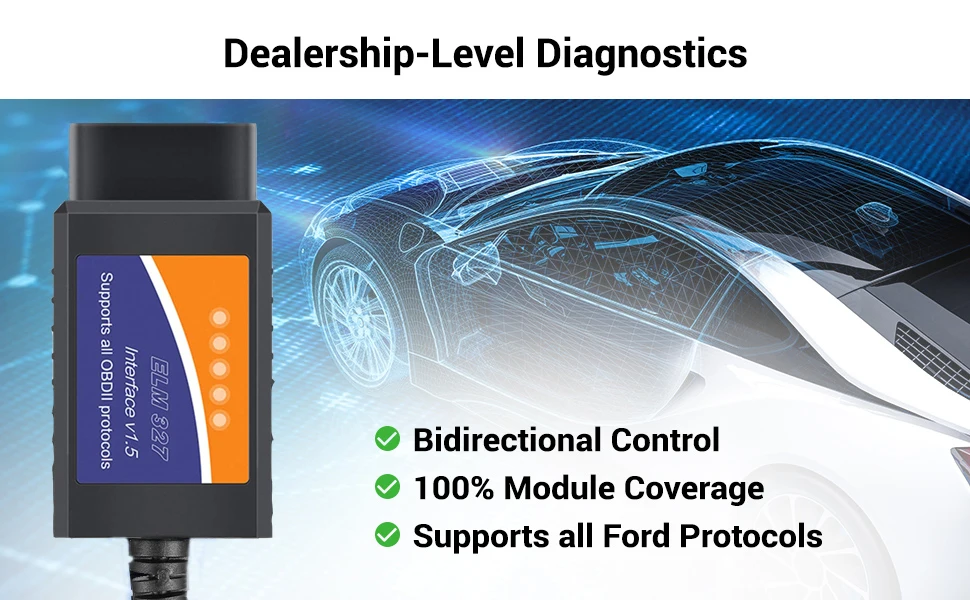

●DEALERSHIP-LEVEL DIAGNOSTICS: Supports all Ford protocols, modules, and advanced features of FORScan
●ELECTRONIC SWITCH allows FORScan to access all CAN buses simultaneously and enables advanced functions not possible with “toggle switch” adapters
●MAXIMUM THROUGHPUT — up to 20 times faster than “toggle switch” adapters
●ROCK-SOLID CONNECTION avoids data corruption and dropped packets

●Access advanced functions not available with the tacky manual toggle switch adapters
●Simultaneously read parameters from ECUs on different CAN networks
●Switch seamlessly between HS-CAN, MS-CAN, and J1850 Ford networks
●”No switch” means no worries about accidentally transmitting on the wrong network

OUR ELM327 USB V1.5 Compare with EX

Supported software:

●FORScan

FORScan Support Windows XP / 7 / Win8 / most Win10.
●Note: only x86 architecture is supported for Windows. ARM architecture is not supported!

Forscan ELM327 USB V1.5 Cable Supported vehicles:

All Ford, Mazda, Lincoln, Mercury vehicles that can be addressed by Ford Forscan Pro USB adapters.
It is 99% of models after 2000 and around 92% of models after 1996 (the year when OBD2 became a standard in USA).
Note: New 2019+ Mazda 3 and CX-30 are not supported yet.
(You can download the latest software from forscan offical website for latest vehicle)

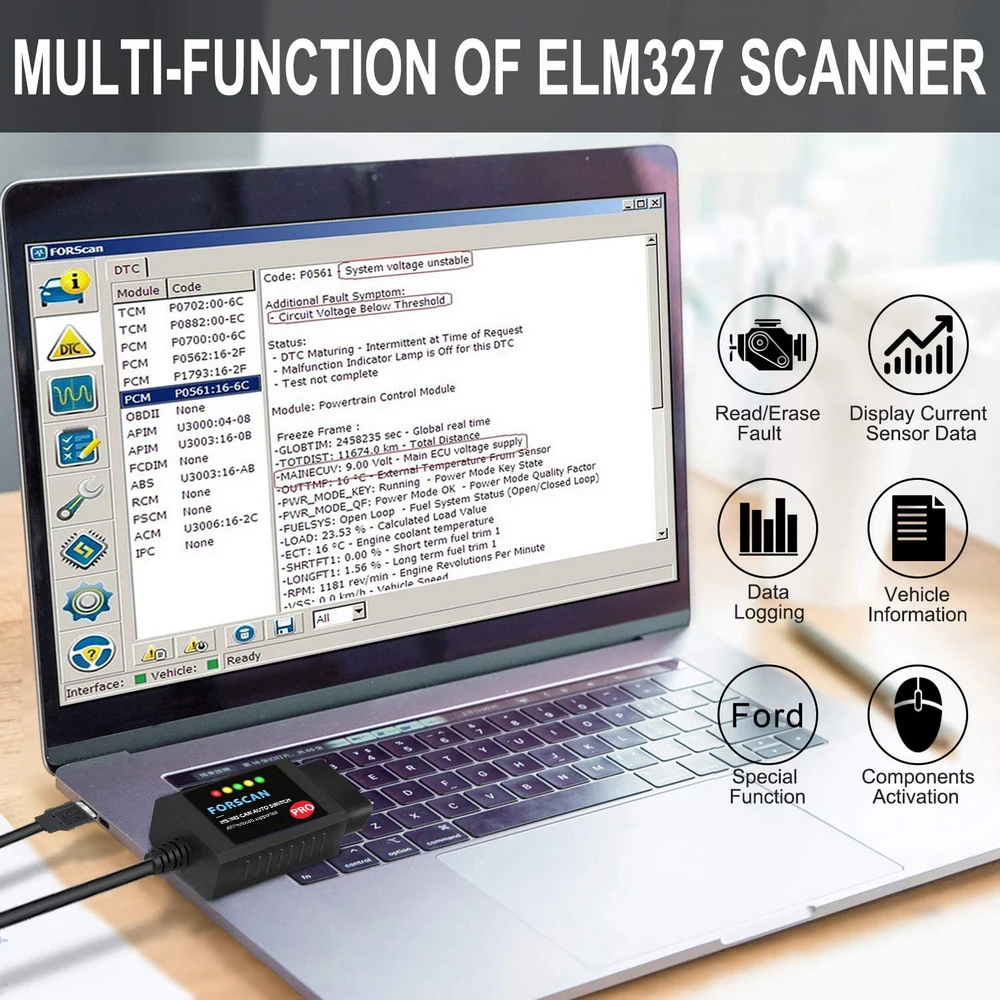

Multi-Function of Forscan ELM327 USB V1.5

* read/erase fault codes from most modules, including OBD2/EOBD
* access modules on both HS-CAN and MS-CAN mode
* read vehicle configuration
* actuator tests
* Live Data
* injector coding
* service procedures
* force DPF regeneration
* programming
* coding
* adaptations

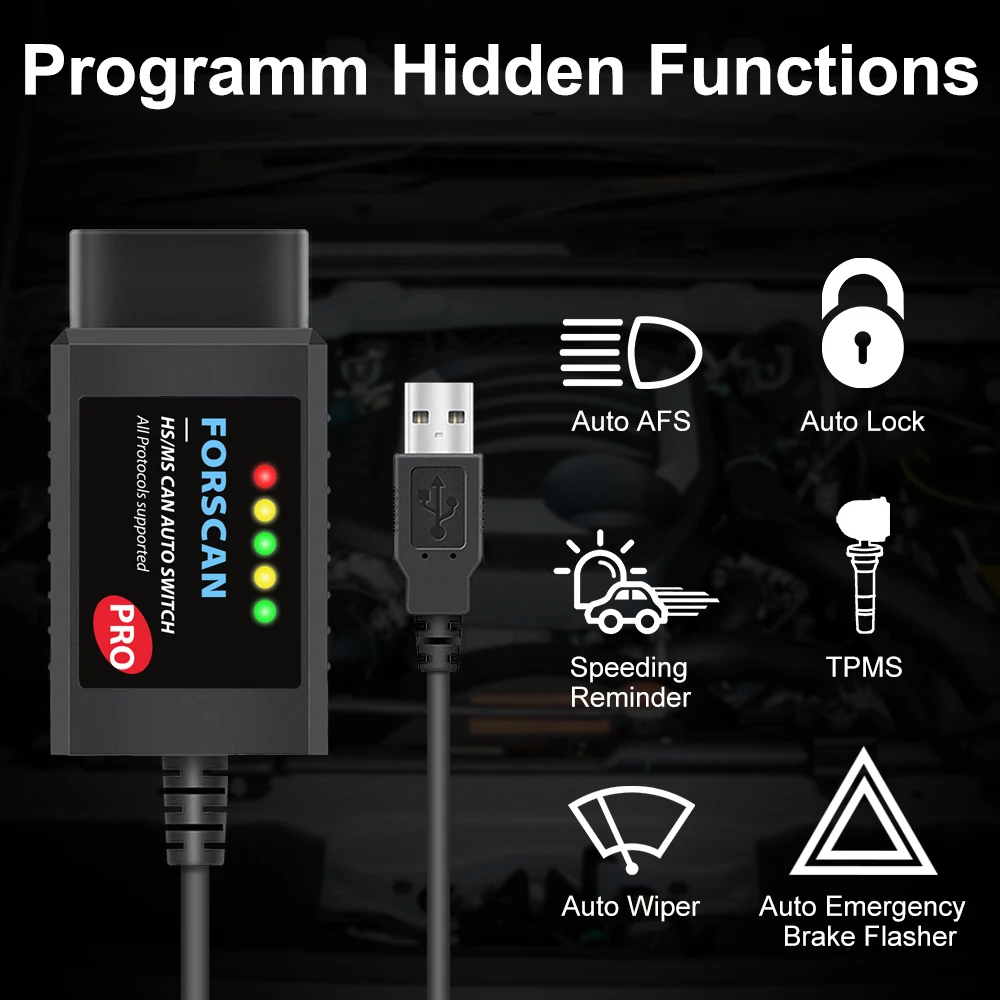

FORScan Programming Hidden Functions

FORScan can detect modules which are not visible for regular OBD2 scanners, can show you trouble codes which are never displayed by OBD2 scanners, can show you PIDs which are not supported by any OBD2 scanner, run specific tests and service procedures.
In other words, FORScan can do things that regular OBD2 scanners can not do.

How To Use:

How To Use:
1.Right-click CH341SER.EXE, choose ” Run as administrator” , install the USB Driver.
2.Right-click FORScanSetup2.3.19.beta.exe , choose ” Run as administrator”, install FORScan
3.Connect the Forscan ELM327 USB V1.5 cable to car and laptop, turn on the ignition of the car. Double click the forscan software icon from desktop to run. Then click the connection icon as showed in the follow picture.

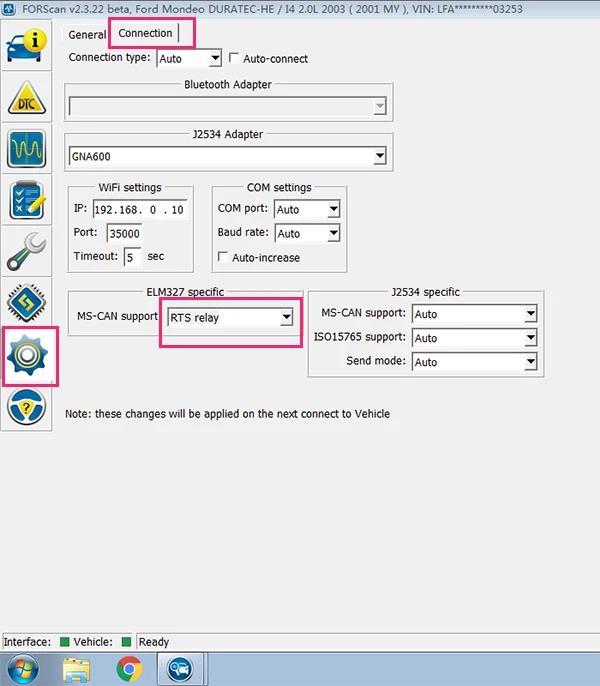

Follow is Important settings

Please make this settings before working with car:
Settings-connection- ELM 327 Specific- RTS relay

Questions & Answers:

Q: What is Extended License, why and when do I need it?
A: Extended License provides access to Configuration and Programming functions of FORScan, and also few Service functions (such as PATS programming). Base FORScan functionality (connection, retrieving vehicle information, reading parameters, read and reset diagnostic trouble codes, run tests and service functions etc) do NOT require Extended License. There is a free 2 month Extended License that can be issued for anyone who has account on forscan official forum. Also there are paid longterm and lifelong licenses. More information about Extended License can be found on forscan official store.

Q: Why FORScan doesn’t show function Y for my car? When this function will be added?
A: Functions may be very different for different models and especially different generations of models and different brands. For example, at this moment there are 50+ known versions of ABS bleed procedure for Ford models, only 10+ are implemented in FORScan.
We do not add functions just for fun, as number of functions is huge because of multiple versions. So we add functions by requests. More requests from users for a function – more chance for this function to be added in the near future.

Q: How can I get Extended License after trial period?
A: At this moment only 2 months free Extended License is available. When it is expired, you will be able to issue another 2 months one, also for free. Or you can buy long term (1, 3, 5 years) or lifelong Extended License.

Problem 1: The laptop no connection with Forscan ELM327 USB V1.5 cable.

Solution:

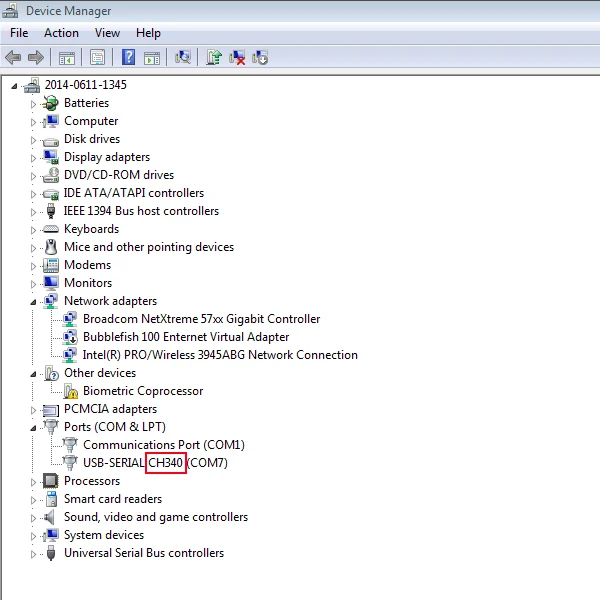

Step1: Please check is the USB Driver installed : Right-click ” My computer” ,”Device Manager” , Ports (COM & LPT) shows “CH340” , if doesn’t see CH340, please reinstall the USB driver.

Step2: If the USB driver was installed, please check the USB Connection and OBDII Connection, make sure well connections.

Problem 2: No connection with the vehicle , if you are using Win10 system

Solution:

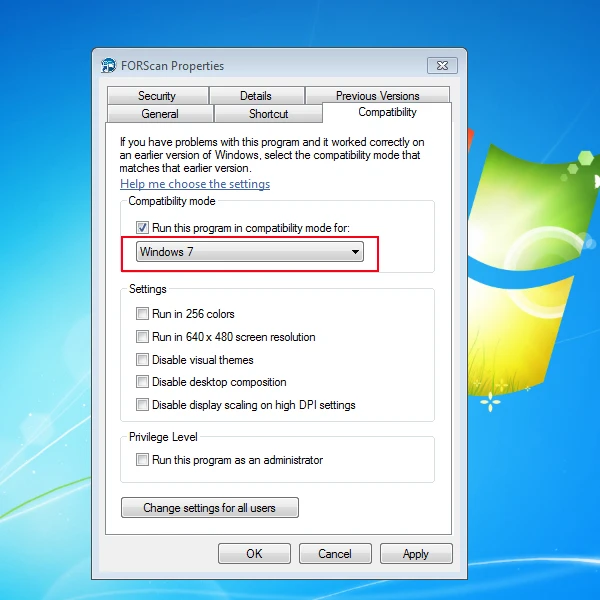

Step1: Right -click the FORScan icon on desktop, Choose ” Properties” , Choose “Compatibility”, Choose ” Windows7 ” , then save.

Step2: Right-click FORScan icon, choose ” Run as administrator” , connect the cable to car and laptop, put ignition on to test.

Problem 3: The car ignition switch is turned on, it still shows: turn the ignition on

Solution:
Step1: Right-click CH341SER , choose ” Run as administrator” , reinstall the USB Driver.
Step2: Right-click FORScan icon, choose ” Run as administrator”

Problem 4: this adapter will not recognize my IPC module on my 2018 F 150 I have tried to access with the MS Can switch but it does not recognize it . Other Modules OK.

Solution:
It is mainly a software problem. You can click follow link to install FORScan 2.3.17
//forscan.org/download/FORScanSetup2.3.17.beta3.exe

Guarantee

It will be tested before shipped out, it was provided 15 Days return and technical support, if any problems, please kindly contact us for support service.
