Autel G-BOX2 Tool for Mercedes Benz All Key Lost Work with MaxiIM IM608/IM508

Autel G-Box Main Features:

1.fit For Mercedes Benz All Keys Lost, Faster Password Calculation
2. Used with IM608
3. Used for Faster fit for Mercedes ECU data and EIS password calculation
4. fit For Mercedes DAS3 can EIS / EZS all keys lost
5. Reduce time reading W204 ECU data & W207 EIS by over 85%
6. No need to remove and reinsert the key for W221 & W164 after 2009 models
7.fit For BMW DME / DDE ISN reading and writing in boot mode
8. G-Box is compatible with both the Autel MaxiIM IM 608 and IM508 with XP400, also compatible with Auro IM600 and Auro IM100 with XP400

Autel G-BOX2 Description:

The G-BOX2 realizes fast mode on vehicle and bench when all keys for Mercedes-Benz vehicles using ths DAS3 EIS/EZS are lost. The use of the G-BOX2 reduces the time needed and eliminates the process of insertion and removal.
The G-BOX2 can read and access most engines manufactured by Bosch including EDS/ MEx17 series engines used in for BMW and for Volks wagen Vehicles. This capability supports the ability to perform adaptions when all keys are lost and engine is replaced.
The G-BOX2 is compatible with the Autel’s advanced diagnostic tablets support IMMO and key programming functions.

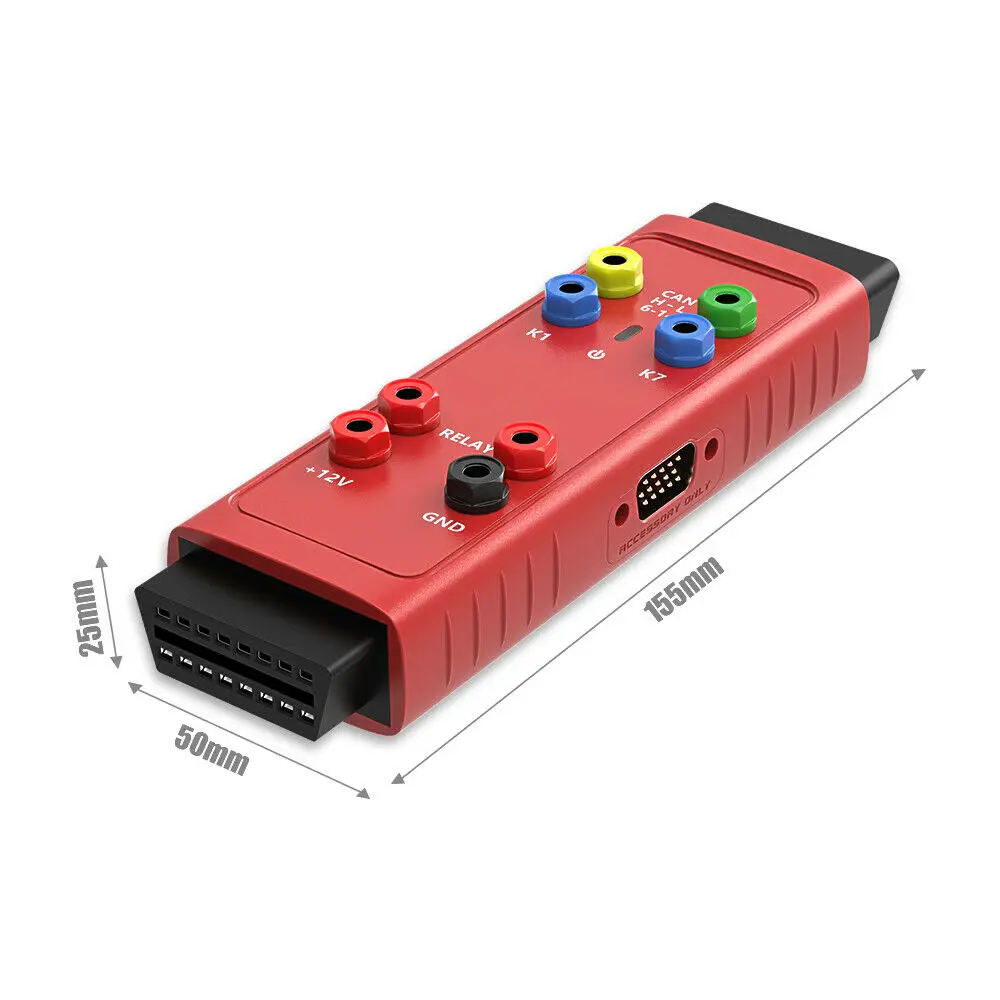

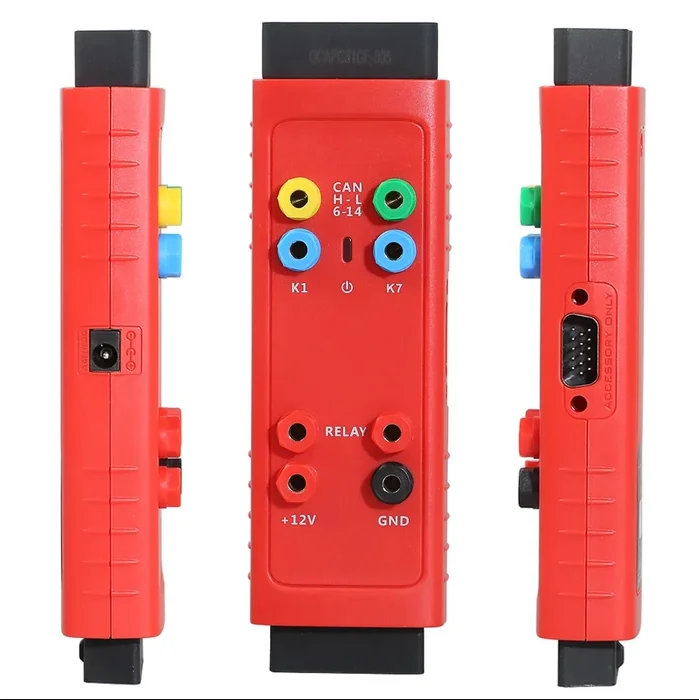

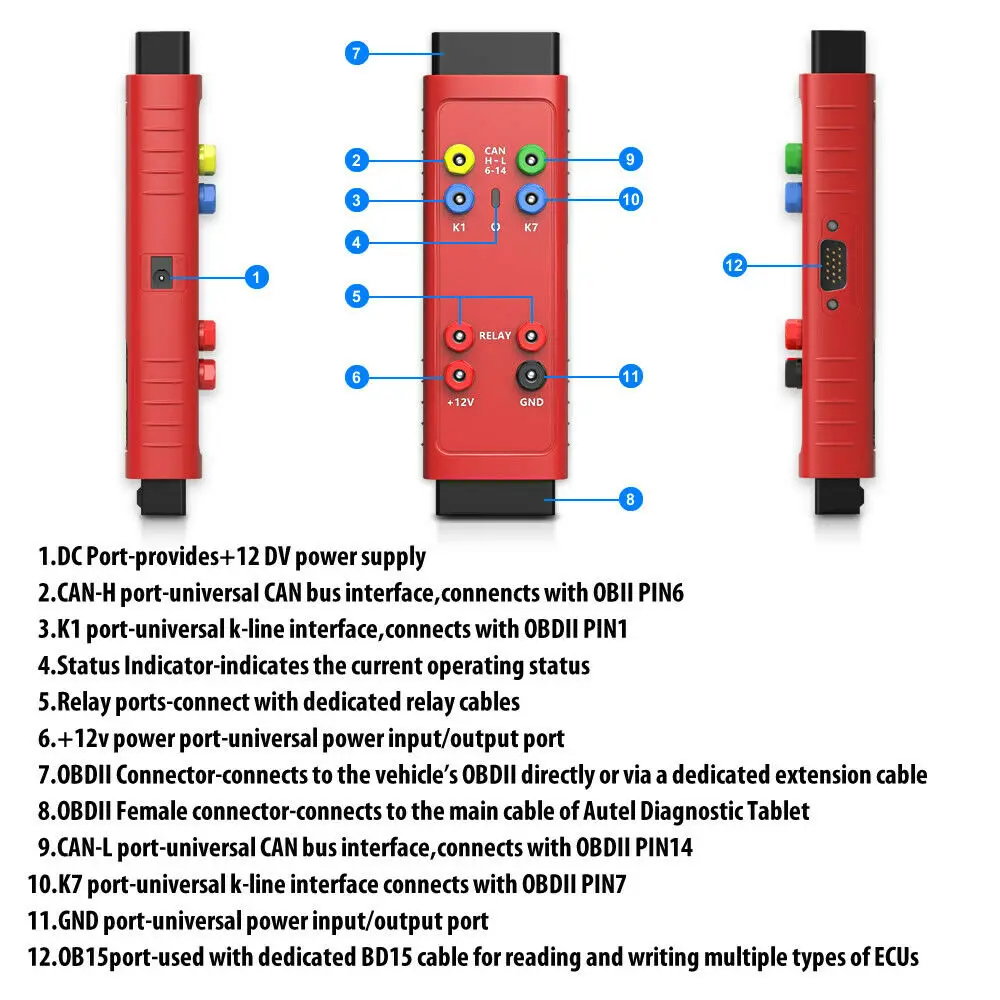

Autel G-BOX2 Product Display:

1.DC Port – Provides +12V DC power supply.
2. CAN-H Port – Universal CAN bus interface, connects with OBDII Pin6
3. K1 Port – Universal K-Line interface, connects with OBDII Pin1
4. Status Indicator – Indicates the current operating status
5. Relay Ports – Connect with dedicated relay cables
6. +12V Power Port – Universal power input/ output port

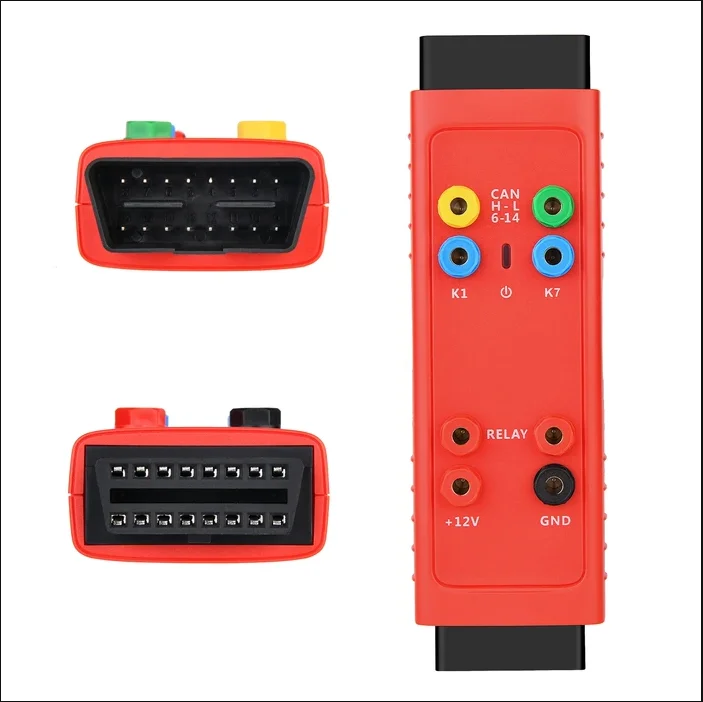

7. OBDII Connector – Connects to the vehicle’s OBDII directly or via a dedicated extension cable
8. OBDII Female Connector – Connects to the main cable of Autel diagnostic tablet
9. CAN-L Port – Universal CAN Bus interface, connects with OBDII Pin14
10. K7 Port – Universal K-Line interface, connects with OBDII Pin7
11. GND Port – Universal power input/ output port
12. DB15 Port – Used with dedicated DB15 cable for reading and writing multiple types of ECUs

Why Buy Autel G-BOX — Small is Smart!

1. fit for MERCEDES-BENZ ALL KEYS LOST, FASTER PASSWORD CALCULATION.
8X TIMES FASTER PASSWORD CALCULATION FOR EIS W172, W204, W207;
4X TIMES FASTER PASSWORD CALCULATION FOR EIS W209, W211, ETC.

2. fit for MERCEDES-BENZALL KEYS LOST, NO MORE REPEATED INSERTIONS AND REMOVALS OF IR SIMULATOR
W164/-2008, W251/-2008, W164/2009-, W169, W251/2009, W216, W221(partial), W202(K)/W208(K)/W210(K), W203(K)/W463(K)

3. fit for MERCEDES-BENZ ALL KEYS LOST, CAN BE PROGRAMMED ON THE VEHICLE WITHOUT REMOVING THE EIS
EXCEPT FOR EIS W164 / -2008, W251 / -2008, W221, W202 (K) / W208(K) /W210(K), AND W203 (K) / W463 (K), ALL OTHER EISS CAN BE PROGRAMMED ON THE VEHICLE DIRECTLY.

4. fit for MERCEDES-BENZ ALL KEYS LOST, BMW DME / DDE ISN READING AND WRITING IN BOOT MODE

How to Use Autel G-BOX2 Work?

1. OBDII Operation when all keys for Mercedes-Benz vehicle are lost
Use OBDII access on for Mercedes=Benz vehicles manufactured after 2009 with W204, W207, W216 and W164 EISs

1. How to do via OBD When All Keys fit for Mercedes-Benz Vehicle Are Lost

This method is suitable for Mercedes-Benz W204, W207, W216 and W164 EISs after the year 2009.

23 CATEGORIES OF BOSCH ENGINE, INCLUDING MEVD/EDC17. 6 CATEGORIES OF SIMENS/CONTINENTAL ENGINE, INCLUDING MSD/MSV ENGINE.

How to do on Bench When All Keys for Mercedes-Benz Vehicle are Lost
This Method is suitable for Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet

How to Connect Autel G-BOX2 Step by Step

1. Plug the G-Box to for Mercedes-Benz EIS using the packed DB15 Cable
2. Plug to the DC port of G-Box using a power adapter (DV 12V)
3. Plug the G-Box to the Autel Diagnostic Tablet (MaxiIM IM608, IM508)

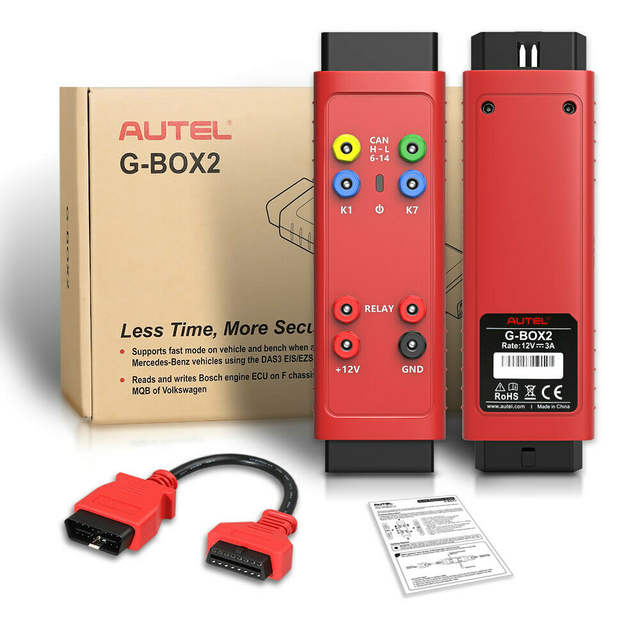

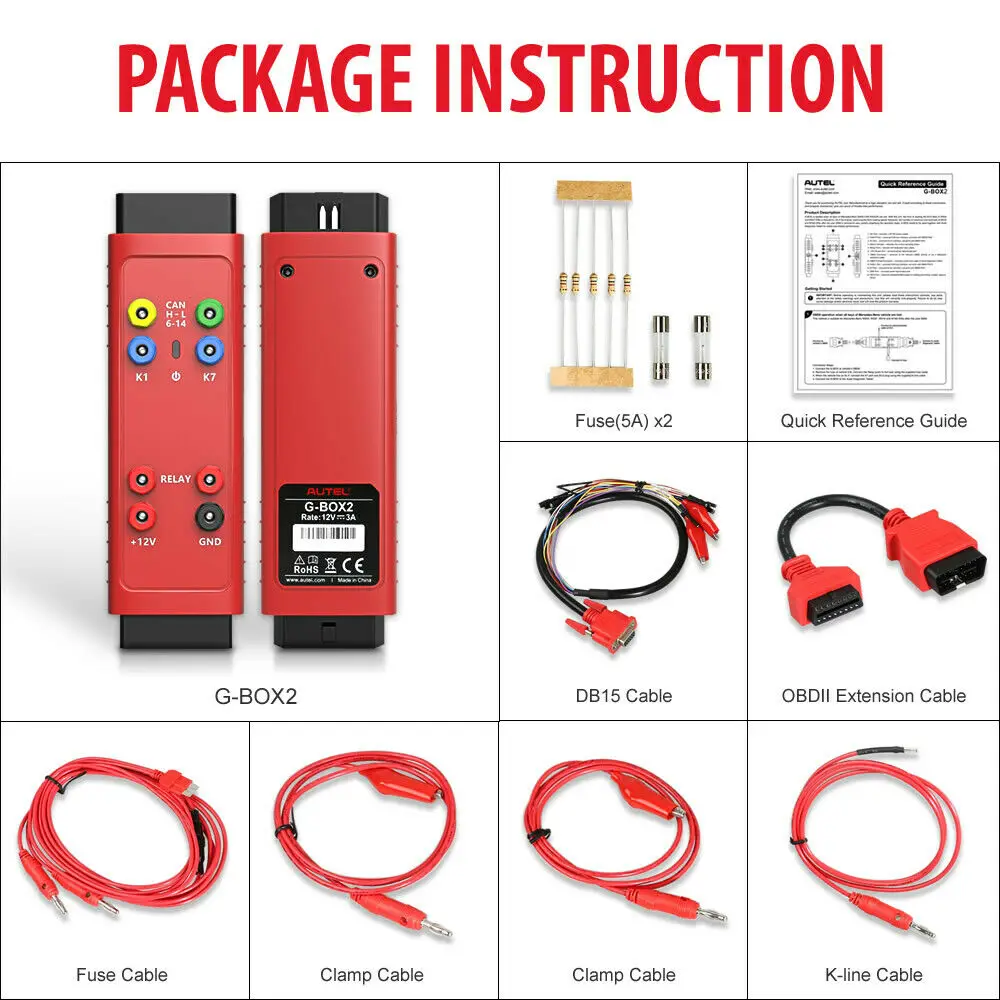

Autel G-BOX2 Package Included:

1pc x Autel G-BOX2
1pc x DB15 Cable
1pc x K-Line Cable
1pc x Fuse Cable
2pcs x Fuse (5A)
2pcs x Clamp Cable
1pc x OBDII Extension Cable
1pc x Quick Reference Guide
